Explain the programing for the mixing tank process operates

Download Solution Now
Added on: 2023-04-20 04:27:31
Order Code: 489031
Question Task Id: 0

NB: This assignment should be complete using TinkerCad software and the flow chart should be complete using microsoft words

Also explain the programing for the mixing tank process operates as described below:

Project C

A mixing tank process operates as described below:

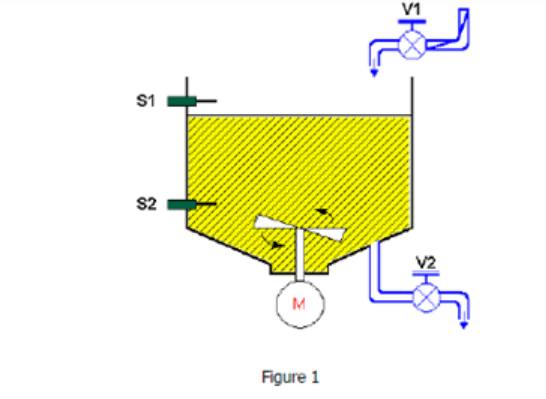

When you push the start switch on the operating panel, valve V1 opens and a reservoir starts filling up with water. As the reservoir fills, the water level goes up and reaches the level set by a sensor S1. V1 valve closes. At the same time, motor M of the mixer starts and runs for 30 seconds. Valve V2 then opens and the reservoir starts emptying. When water level falls below the level set by a sensor S2, valve V2 closes. When valve V2 closes a lamp that indicates end of a cycle is activated.

c) Audio/visual alarm.

d) LCD should display processes.

Include also in your presentation a flowchart of the systems/ prototype.
