INFO6002 Data Dictionary Assignment
- Subject Code :
INFO6002
- Country :
Australia
Following are sample formats for the Data Dictionary section for Assignment 1. This is done for a library system to give you an idea of the format that your answers will be in. Your answers for Assignment 1 will be for the scenario as per the assignment specification.
Note that these are only samples, so the answers in your Assignment will be much more extensive than these.
All of the entries in the Data Dictionary will correspond to information that appears on your EER model.
Data Dictionary for Library System
Entity Types
| Entity name | Description |
|---|---|
| book | a physical copy of a printed book |
| member | a person who uses the resources of the library |
| more |
Relationships
| Entity name | Multiplicity | Relationship | Multiplicity | Entity name | Description |
|---|---|---|---|---|---|
| member | 0 .. 1 | Borrows | 0..10 | book | a member borrows books |
| book | 0 .. * | Located at | 1 .. 1 | library | a book is currently located at a particular library |
| more |

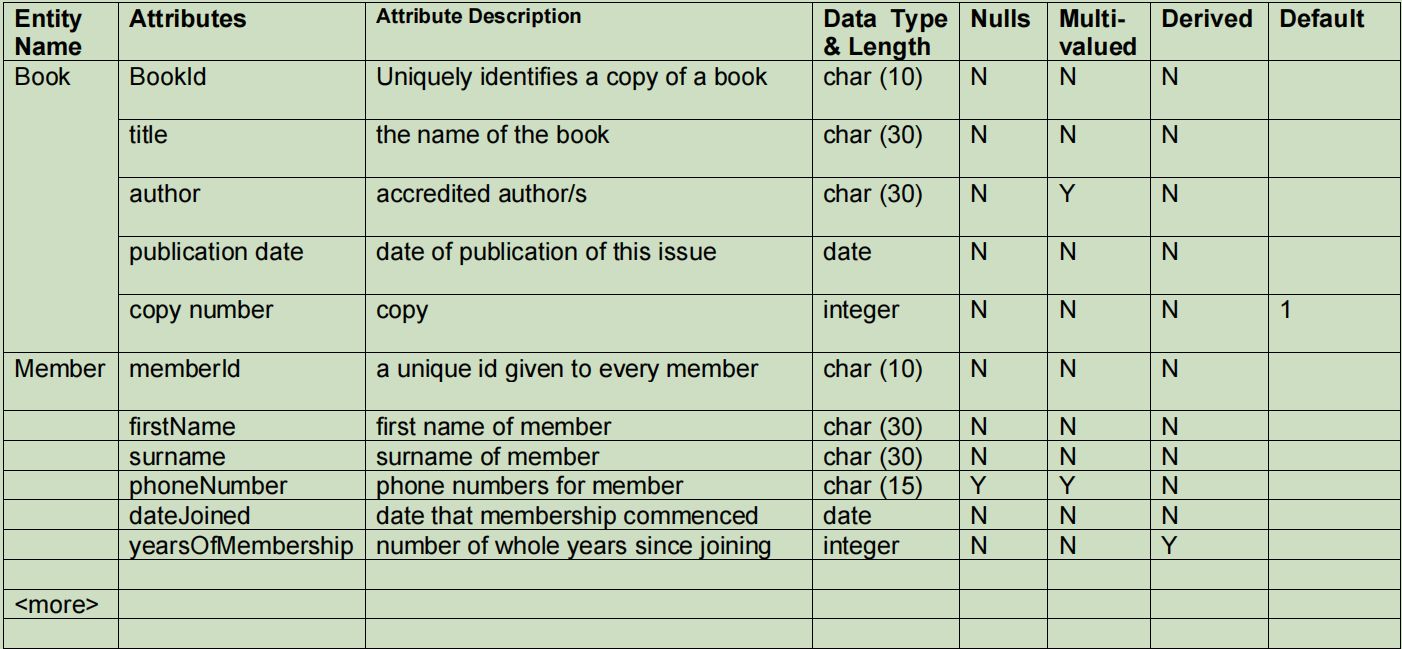

Attributes
