Theory of PID Controllers for Instrumentation

A manipulated variable (MV) is produced by the PID controller as an output after comparing the setpoint and actual values of the process variable (PV). Proportional-Integral-Derivative controllers, or PID controllers, are a common type of feedback control mechanism utilised in many different fields, including process control, automation, and instrumentation. The manipulated variable (MV), which is its output, is calculated by continuously comparing the desired setpoint (SP) with the actual value of the process variable (PV).
The PID controller operates as follows: Proportional Control (P): The proportional term reacts to the current discrepancy between the process variable and the setpoint. It generates a result whose output is proportionate to the error. The magnitude of this response depends on the proportional gain (Kp). A stronger and quicker corrective action is produced by a larger value of Kp.

• Integral Control (I): The integral term considers the accumulated error over time by integrating the error signal. It helps in reducing the steady-state error by continuously adjusting the controller output based on the cumulative error. The integral gain (Ki) determines the rate at which the controller corrects the accumulated error. A higher Ki value increases the controller's sensitivity to past errors.
• Derivative Control (D): The derivative term anticipates the future trend of the error by calculating the rate of change of the error signal. It helps in damping oscillations and minimizing overshoot by applying corrective action based on the rate of error change. The derivative gain (Kd) determines the influence of the rate of change on the controller output. A higher Kd value enhances the controller's responsiveness to sudden changes.

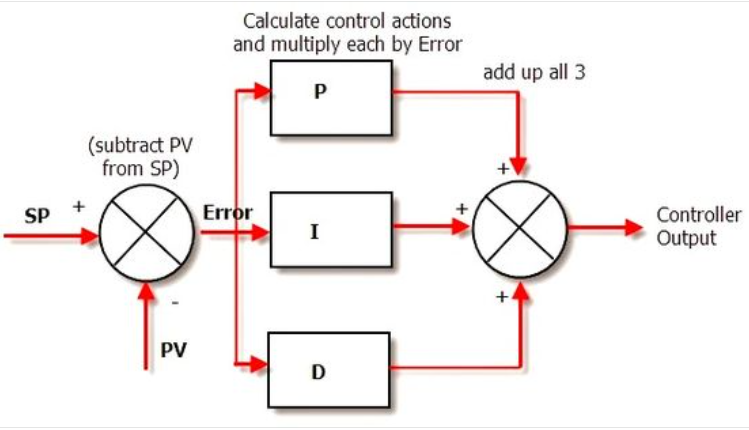

  The PID controller combines the three control terms (proportional, integral, and derivative) to generate the controller output or manipulated variable (MV) using the following equation:MV = Kp * (P + Ki * ?(P) + Kd * dP/dt)where P is the error signal (SP - PV), and dP/dt represents the rate of change of the error. The gains Kp, Ki, and Kd are determined through tuning methods to achieve the desired control performance.PID controllers are widely used due to their simplicity, effectiveness, and versatility in various control applications. They can be implemented using analog or digital hardware, and many modern control systems provide software-based PID control algorithms.

  Instrumentation tools, such as temperature controllers, pressure controllers, flow controllers, and level controllers, often incorporate PID control strategies to regulate the respective process variables. These tools utilize sensors to measure the process variable and provide feedback to the PID controller, which then calculates the appropriate manipulated variable to maintain the desired setpoint.Overall, the PID controller theory and instrumentation tools play a crucial role in achieving accurate and stable control of industrial processes, ensuring optimal performance and efficiency.
