BLDG2002 Building Measurement Assessment
- Subject Code :
BLDG2002
- Country :
Australia

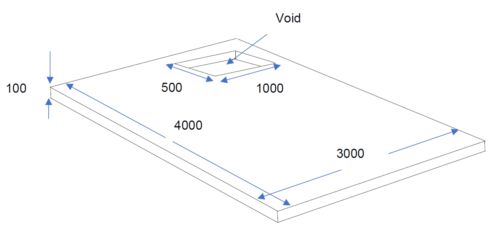

- What is the extended quantity of insitu concrete of the slab as per ASMM? (3 Marks)
- 1.15 m^3
- 2.00 m^3
- 1.20 m^3
- 1.25 m^3
- What is the extended quantity of formwork of the edge of slab as per ASMM? (3 Marks)
- 14.20 m^2
- 14.00 m
- 4.20 m^2
- 10.00 m^2

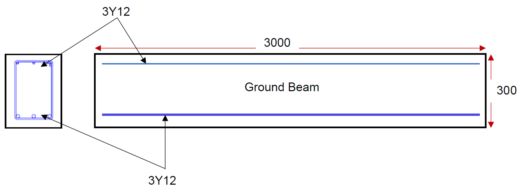

- What is the extended quantity of the Y12 reinforcement bars in t (tonne) in the ground beam as per ASMM? The weight per meter run (kg/m) of 12mm diameter bar reinforcement is 0.888. The concrete cover is 60mm. (3 Marks)
- 0.02 t
- 0.10 t
- 15.46 t
- 0.01 t

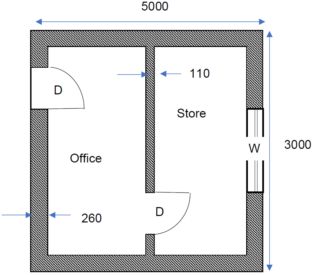

- As per ASMM, calculate the extended quantity of the internal insitu plastering ceiling for Office and Store. (2 Marks)
- 10.84 m^2
- 11.11 m^2
- 12.00 m^2
- 11.00 m^2

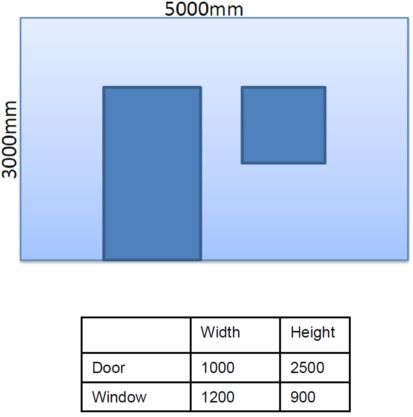

- What is the extended quantity of the brick wall as per ASMM? (3 Marks)
- 11.08 m^2
- 15.00 m^2
- 11.00 m^2
- 11.42 m^2

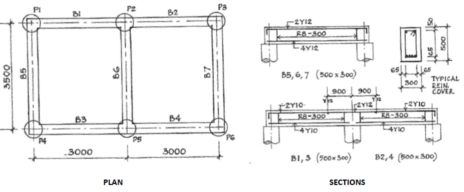

- Following drawing shows a plan and sections of a pier and beam footing. As per ANZSMM, list down two CONCRETE (IN-SITU) items to be measured including the unit of measurement and ASMM reference number in the answer field provided (2.5 Marks).
- Briefly introduce the following terms (2.5 marks)
- Preliminaries
- Preambles
- Provisional Sums
- Prime cost sum
