Create a robot path planner challenging case

Task Summary

In this assessment, you are to program an AI agent to solve a real-world, challenging case study. This  assessment is done individually and you are to submit programs and supporting documents. Please  refer to the Task Instructions for details on how to complete this task. This assessment is intended to  test:

• Your understanding of the theories covered in Module 1 to 12.
• Your ability to formulate and frame a simplified real-world problem for an AI problem solving technique.
• Your ability to choose a suitable AI technique for the problem.
• Your ability to develop an AI problem solving technique in a modern programming language. • Your ability to provide a document to discuss the potential applications and ethics of the AI solution.

Context

You are to create a robot path planner that is able to find an optimal path to navigate an  environment and reach a target. By completing this assessment, you will show your skills on  leveraging the best AI methods to solve a simplified real-world problem.

The maze can be seen in the image below. It can be seen that there are 12 rows and 24 columns, meaning there is a total of 288 blocks on the map. There are four different types of blocks in this  map as follows:

• Green: wall
• White: space (void)
• Red: initial position of the robot
• Blue: the target

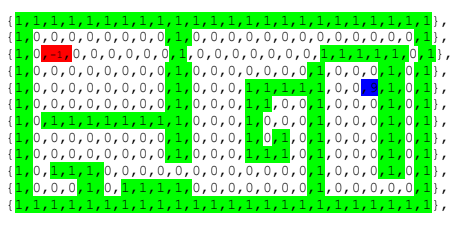

You can easily represent the entire maze as a 2D array with 0s and 1s:

In this array, we use the following numbers to represent different types of blocks:

• 1: wall
• 0: space (void)
• -1: initial position of the robot
• 9: the target

In this assessment, you need to design and implement a robot path planner. Note your learning  facilitator will give you the type and name of the search or optimization algorithms that you have to  implement. The learning facilitator might ask you to work on a randomly generated maze as well.  You do not have to draw a maze like the picture above. You can simply mark the shortest path  obtained by your algorithm using for instance 2 (or any other numbers except 1, 0, -1, and 9) in the  2D array. If you draw the maze, however, it will be a lot easier to visualise the path and make sure  that it is the closest path to the target when you are testing your program.

By implementation, we mean to write the steps that should be taken to find the shortest path from  the initial position to the target as a pseudocode.

After implementation, write a reflective report detailing the experience of the development process.  The report should be 2000 words (10%+-) in length and include the following sections:

• Overview
• What went right
• What went wrong
• What you are not sure about
• Conclusion

Note that your pseudocode is not be included in the word count.

Task Instructions

• Appropriate, effective and correct usage of pseudocode to design and develop and algorithm
• Effective use of search and or optimization algorithms in AI.
• Good selection of search and/or optimization algorithms.

The pseudocode that you will be submitting:

1. Should be clear and detailed
2. Should be structured and written with the best practices.
3. There should be enough number of comments to show your understanding of the program.
4. Flowcharts can be used to complement the pseudocode
