HIT374 Enterprise Network Engineering Assignment

• The interim report of around 1000 words is worth 15%
• The final report of around 2000 to 2500 words and
• packet tracer simulation are worth 45%

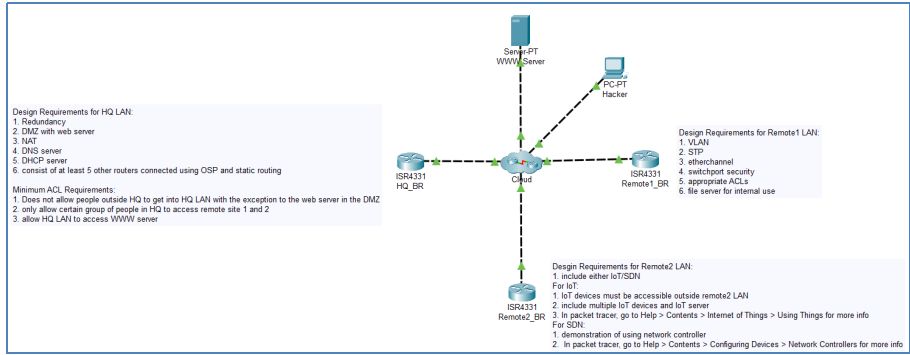

You are required to use the given packet tracer file and build upon it. The design requirements for each area are shown below:

Please note:

1. The Cloud LAN consists of 4 ISPs routers. You will need to configure them with appropriate routing protocols (both static and dynamic routing protocols) to ensure connectivity between the devices.
2. WWW server has the IP address of 200.200.200.1 and URL: www.world.com
3. PC Hacker has the IP address of 210.210.210.1. This is to test the security of your LANs. Basic security configurations must be configured for all devices.

Refer to the final report marking rubric for more details.

B. Interim report

Refer to the interim report document for more information.

C. Submission:

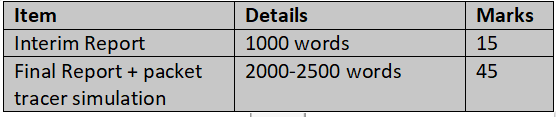

Item Details Marks Interim Report 1000 words 15 Final Report + packet tracer simulation 2000-2500 words 45

D. Report Format:

1. Cover page
2. Content page
3. Abstract
4. Introduction

• Background
• Literature review
• Aim and Scope
  1. Design
     Topology
     Description: reason for the design of each LAN and how they meet all the requirements, aims, what it can do and limitations
     IP addressing for your topology
  2. Results
     Simulation outcomes
     Analysis
  3. Conclusion
     Ethical consideration
     Further work
  4. References
