TechnicalDigitalIllustrationPortfolio 83622

Assessment2:TechnicalDigitalIllustrationPortfolio

SubjectName: VisualisingFashion1

SubjectNumber: 83622

Submission Date: Week8,Tuesday 8April,before9am Where: Canvas Assignments

AssessmentWeighting: 30%(individualexercise)

SubjectLearningOutcomes:

1. You will be able to present fashion and textiles design work effectively utilising various visual
2. You will be able to creatively problem solve approaches to fashion and textile design practices through illustration
3. You will have gained the ability to use creative approaches to technology-based activities for presentation and generation of fashion and textiles design
4. You will develop appropriate technical skills for both digital and hand illustration
5. You will have developed an approach to illustration that displays accuracy, rigour and care in finished

PREAMBLE:

Technical sketches are precise detailed illustrations of garments that provide designers,patternmakers, sample cutters, machinists and buyers with accurate details of garments, including proportion and garment construction specifics such as top stitching, fastenings,seamplacementandinsomecasesinternalstructures.

Attention to detail is important to develop an understanding of 3-dimensional garmentsand translate them into precise flat technicalsketches.

ASSESSMENTTASK:

From Weeks 1 through to 6 in your digital class, you will be introduced to new garments and Adobe Illustrator tools to create digitaltechnicalsketches.Usingspecifictoolsandtechniquesyouwillcompletedetailedtechnicalsketchesduringclassandas homeworkexercises.Eachweektherewillbeafocusonnewtoolsandcertainareasofgarmentconstruction,(e.g., pockets/topstitching). Digital technical sketches must be neat, detailed and display an understanding of garment construction (which you will be learning in Foundations in Patternmaking and Construction 1). Feedback will be provided in studio on the progress of your work.

Please be aware that learning in one subject also affects your understanding of another, all subjects have crossovers in knowledgerequired,andtechniques,thereforeitisimportantthatyouunderstandyourlearningasanintegratedpracticethatnosubject/technique is developed in isolation and requires youto draw on your own knowledgefrom other subjects.

Thesesketches areto besubmittedon Canvas,Tuesday inWeek 08before 9amas adigital PDFfile.Youare requiredto include10sketchesinthedigitalillustrationportfolio.Itwillbeimportantto developgoodtimemanagementskillsto successfullycompletethisassessmenttask.

Theworkwillbeassessedprimarilyonyourabilitiestocorrectlyrenderthegarmentsanddisplayanunderstandingofgarment construction; neatness in presentation of work willalso be assessed.

SUBMISSION:TECHNICALDIGITALILLUSTRATIONPORTFOLIO

PDF Portfoliorequires:

• 10digitaltechnicalsketchesofthefollowinggarments:

• 1xCargoShorts
• 1xSkirt
• 1xJeans
• 1xWidelegpants
• 1xCollaredshirtwithlongsleeves
• 2xDresses(withsmocking,pleatingorfullnessfromgatheringordrape)
• 1xTailoredjacket
• 1xFauxfurjacketorjacketwithquilting
• 1xKnitgarment(jumperorcardigan)
  • Sketches are to be in Black and White only, except for 2 sketches: one with pattern repeat or polka dot, and one with stripe repeat. If the repeat pattern is too dark, use a lighter shade of colours then include a small fabric swatch with actual colours.
  • Technical sketches (all 3 views) must fit in at least a 10x25cm minimum area in a landscape layout
  • Each week MUST have the following text:
• Garment name
• Front Side and Back views labelled

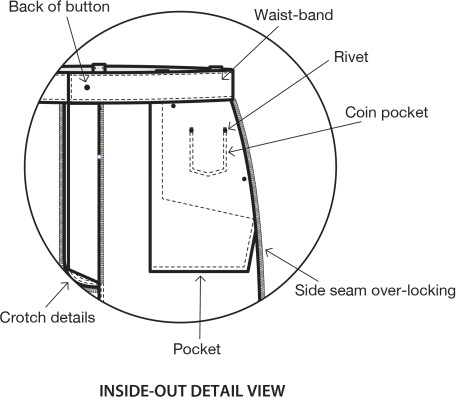

• Label all features of theSee internal detail view of technical sketch example below.
  • Also, for a minimum of 4 garments include a detailed keyhole technical illustration to provide additional information about a garment's complex or hidden feature. See examples below.

Szkutnicka,B.(2017).Flats,technicaldrawingforfashion:acompleteguide(Secondedition). LaurenceKing.

Szkutnicka,B.(2017).Flats,technicaldrawingforfashion:acompleteguide(Secondedition). LaurenceKing.

EmersonWhite(Student2022)

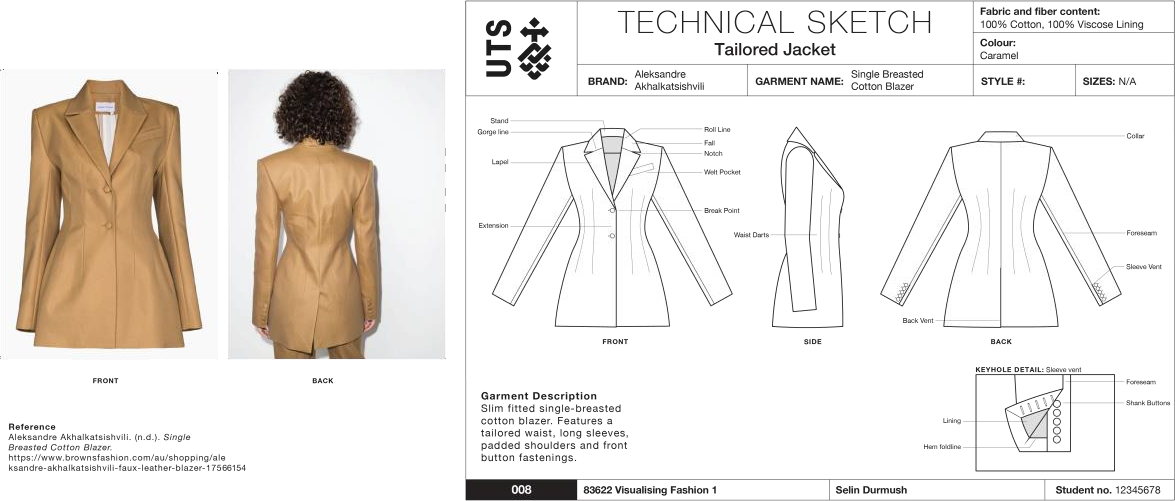

SelinDurmush(Student2022)

SUPPORTINGDOCUMENTATION:

Supporting/referenceimages,mustbe:

• Colour photos only
• Must be at a minimum 150ppi small and pixelated images will not be
• You must include a correct APA reference for all images sourced and on a separate page in the

SeeAPAReferencingGuideontheLibrarywebsitetocorrectlyreferenceallwebsitesandbooksaccessed.https://www.lib.uts.edu.au/referencing/apa

FILENAME:

StudentsarerequiredtouploadtheircompletedPDFto:

• Canvas Assignments
• Must be in alandscape,minimumA4formatandsavedasaPDFat150ppi
• File size mustnotexceed20MB
• Filename format: pdf

ASSESSMENTCRITERIAFORTHISTASK:

C-2 Creative,professionalandclearcommunicationinpresentationofwork P-2 Quality and accuracy of techniques and tools used in Adobe Illustrator

P-5 Technical Sketches arecorrectly annotated and display clarity andgood communication of garment detail P-2 Correctuse ofdigital programs forpresentationandAdobe Illustratortools andfunctions

A-3 Professionalism of presentation of final work
