Gravity and Motion
- Subject Code :
PHYS101
- University :
University of Sydney Exam Question Bank is not sponsored or endorsed by this college or university.
- Country :
Australia
Marking summary | ||
Criterion | Marks allocated | Provisional marks |
Research and planning | 6 | |
Analysis of evidence | 6 | |
Interpretation and evaluation | 6 | |
Communication | 2 | |
Overall | 20 | |
Conditions
Technique -Student experiment
Unit -Unit 3: Gravity and electromagnetism
Topic/s -Topic 1: Gravity and motion
Topic 2: Electromagnetism
Duration -10 hours of class time
Mode / length -Written (e.g. scientific report): 15002000 words
Individual / group -Individual response; students may collaborate to develop the methodology and perform the experiment
Resources - The materials required to complete this assessment will be provided to students where they can be safely transported by mail or collected directly from the school. Where materials cannot be provided by the school, students may be required to source their own materials or modify their methodology.
Other resources include online research, data bases and journals.
Context
You have completed the following experiments in class:
- Conduct an experiment and collect quantitative / qualitative data to determine the horizontal distance travelled by an object projected at various angles from the
- Conduct an experiment and collect quantitative / qualitative data to investigate the strength of a magnet at various distances.
- Conduct an experiment and collect quantitative / qualitative data to investigate the force acting on a conductor in a magnetic field.
Task
- Modify (i.e refine, extend or redirect) an experiment in order to address your related research question.
- You may use a practical performed in class, a related simulation or another practical related to Unit 3 (as negotiated with your teacher) as the basis for your methodology and research question.
To complete the task, you must:
- Identify an experiment to *
- Develop a research question to be *
- Research relevant back ground scientific information the modification of the research question and methodology.
- Conduct a risk assessment and account for risks in the *
- Conduct an *
- Collect sufficient and relevant qualitative and quantitative data to address the research question.*
- Process data and present the data
- Analyse the evidence to identify trends, patterns or
- Analyse the data to identify uncertainty and
- Interpret the evidence to draw conclusions to the research
- Evaluate the reliability and validity of the experimental
- Suggest possible improvements and extensions to the
- Communicate findings in an appropriate scientific genre, e scientific report.
*The steps indicated with an asterisk above may be completed in groups. All other elements must be completed individually.
Checkpoints
- Week after Handout: Select experiment and identify proposed Develop research question and complete risk assessment.
- Weeks after Handout: Perform experiment and process data
- Weeks after Handout: Analyse and evaluate
- Weeks after Handout: Evaluation of evidence
- Weeks after Handout: Submit draft. 8 Weeks after Handout: Submit final response
Authentication strategies
- Teacher will provide class time for task
- Students will provide documentation of their progress at indicated
- Teacher will collect and annotate one draft
- Teacher will consult with each student as they develop the
- Students will submit the assignment via QLearn and use plagiarism detection software at submission of the response.
- Students must acknowledge all
- Teacher will compare the responses of students who have worked together in
Scaffolding
The response must be presented using an appropriate scientific genre(i.e scientific report) and contain:
- a research question
- a rationale for the experiment
- a reference to the original experiment and identification and justification of modifications to the methodology
- raw and processed qualitative and/or quantitative data
- analysis of the evidence
- conclusion/s based on the interpretation of the
- an evaluation of the methodology and suggestions of improvements and extensions to the experiment
- a reference list

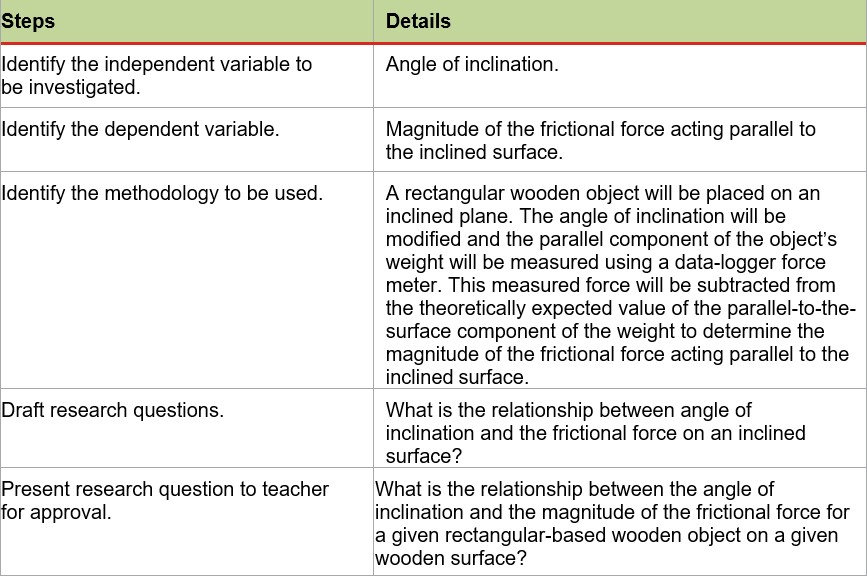

An example of how one of the practicals could be modified to develop a research question.
Practical that will be modified: conduct an experiment to investigate the parallel component of the weight of an object down an inclined plane at various angles.
Research question: What is the relationship between the angle of inclination and the magnitude of the frictional force for a given rectangular wooden object on a given wooden surface?
Develop the research question
Note: You can not use this sample research question for your experiment.
Instrument-specific marking guide (IA2): Student experiment (20%)
Criterion: Research and planning
Assessment objectives
- apply understanding of gravity and motion, or electromagnetism to modify experimental methodologies and process primary data
- investigate phenomena associated with gravity and motion, or electromagnetism, through an experiment
The student work has the following characteristics: | Marks |
informed application of understanding of gravity and motion, or electromagnetism to modify experimental methodologies demonstrated by a considered rationale for the experiment justified modifications to the methodology effective and efficient investigation of phenomena associated with gravity and motion, or electromagnetism demonstrated by a specific and relevant research question a methodology that enables the collection of sufficient , relevant data considered management of risks and ethical or environmental issues. | 56 |
adequate application of understanding of gravity and motion, or electromagnetism to modify experimental methodologies demonstrated by a reasonable rationale for the experiment feasible modifications to the methodology effective investigation of phenomena associated with gravity and motion, or electromagnetism demonstrated by a relevant research question a methodology that enables the collection of relevant data management of risks and ethical or environmental issues. | 34 |
rudimentary application of understanding of gravity and motion, or electromagnetism to modify experimental methodologies demonstrated by a vague or irrelevant rationale for the experiment inappropriate modifications to the methodology ineffective investigation of phenomena associated with gravity and motion, or electromagnetism demonstrated by an inappropriate research question a methodology that causes the collection of insufficient and irrelevant data inadequate management of risks and ethical or environmental issues. | 12 |
does not satisfy any of the descriptors above. | 0 |
Criterion: Analysis of evidence
Assessment objectives
- apply understanding of gravity and motion, or electromagnetism to modify experimental methodologies and process primary data
- analyse experimental evidence about gravity and motion, or electromagnetism
- investigate phenomena associated with gravity and motion, or electromagnetism, through an experiment
The student work has the following characteristics: | Marks |
appropriate application of algorithms, visual and graphical representations of data about gravity and motion, or electromagnetism demonstrated by correct and relevant processing of data systematic and effective analysis of experimental evidence about gravity and motion, or electromagnetism, demonstrated by thorough identification of relevant trends , patterns or relationships thorough and appropriate identification of the uncertainty and limitations of evidence effective and efficient investigation of phenomena associated with gravity and motion, or electromagnetism demonstrated by the collection of sufficient and relevant raw data. | 56 |
adequate application of algorithms, visual and graphical representations of data about gravity and motion, or electromagnetism demonstrated by basic processing of data effective analysis of experimental evidence about gravity and motion or electromagnetism, demonstrated by identification of obvious trends , patterns or relationships basic identification of uncertainty and limitations of evidence effective investigation of phenomena associated with gravity and motion or electromagnetism, demonstrated by the collection of relevant raw data. | 34 |
rudimentary application of algorithms, visual and graphical representations of gravity and motion, or electromagnetism demonstrated by incorrect or irrelevant processing of data ineffective analysis of experimental evidence about gravity and motion, or electromagnetism demonstrated by identification of incorrect or irrelevant trends , patterns or relationships incorrect or insufficient identification of uncertainty and limitations of evidence ineffective investigation of phenomena associated with gravity and motion, or electromagnetism demonstrated by the collection of insufficient and irrelevant raw data. | 12 |
does not satisfy any of the descriptors above. | 0 |
Criterion: Interpretation and evaluation
Assessment objectives
- interpret experimental evidence about gravity and motion, or electromagnetism
- evaluate experimental processes and conclusions about gravity and motion, or electromagnetism
The student work has the following characteristics: | Marks |
insightful interpretation of experimental evidence about gravity and motion, or electromagnetism demonstrated by justified conclusion /s linked to the research question critical evaluation of experimental processes about gravity and motion, or electromagnetism demonstrated by justified discussion of the reliability and validity of the experimental process suggested improvements and extensions to the experiment that are logically derived from the analysis of evidence. | 56 |
adequate interpretation of experimental evidence about gravity and motion, or electromagnetism demonstrated by reasonable conclusion / s relevant to the research question basic evaluation of experimental processes about gravity and motion, or electromagnetism demonstrated by reasonable description of the reliability and validity of the experimental process suggested improvements and extensions to the experiment that are related to the analysis of evidence. | 34 |
invalid interpretation of experimental evidence about gravity and motion, or electromagnetism demonstrated by inappropriate or irrelevant conclusion /s superficial evaluation of experimental processes about gravity and motion, or electromagnetism demonstrated by cursory or simplistic statements about the reliability and validity of the experimental process ineffective or irrelevant suggestions. | 12 |
does not satisfy any of the descriptors above. | 0 |
Criterion: Communication
Assessment objectives
- communicate understandings and experimental findings , arguments and conclusions about gravity and motion, or
The student work has the following characteristics: | Marks |
effective communication of understandings and experimental findings , arguments and conclusions about gravity and motion, or electromagnetism demonstrated by fluent and concise use of scientific language and representations appropriate use of genre conventions acknowledgment of sources of information through appropriate use of referencing conventions. | 2 |
adequate communication of understandings and experimental findings , arguments and conclusions about gravity and motion, or electromagnetism demonstrated by competent use of scientific language and representations use of basic genre conventions use of basic referencing conventions. | 1 |
does not satisfy any of the descriptors above. | 0 |
