Complete the following table for the Surveying for a road plan

1. USING THE PLAN

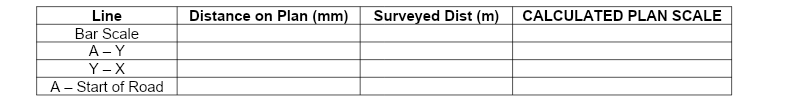

Determine the scale of the plan

PLAN SCALE ADOPTED BY YOU (rounded to nearest 10 – no units or decimals) ….
Please give a brief reason why this scale was adopted

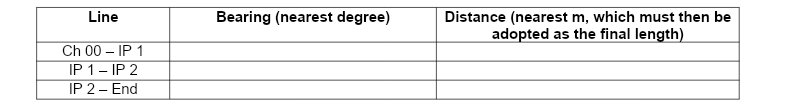

Find Bearings and Distances of each Line

1) and 3) Both your plan and longsection will need to be scanned then pasted to the end of this word document.

2) HORIZONTAL ALIGNMENT

Calculate each Deflection Angle

Deflection Angle at IP1 (nearest degree) …

Deflection Angle at IP2  (nearest degree) ….

Curve Elements

Tangent Distance for Curve 1 …

Arc Length of Curve 1 …

Tangent Distance for Curve 2 …

Arc Length of Curve 2 …

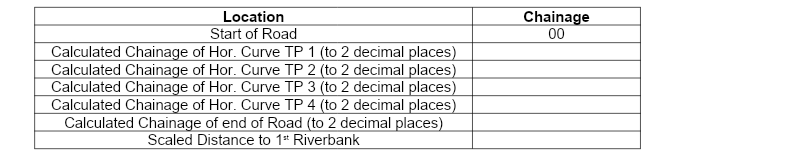

Chainages along the road

3) VERTICAL ALIGNMENT
Complete this table by calculating the design level at every 10m of running chainage. Please indicate the TPs and IPs of each VC in the chainage column with the chainage.   (e.g.  320 TP, 360 IP)
Your longsection must be pasted at the end of this answer file. Where possible please scan it.
(Please complete the chainages in the table as necessary for your unique design).

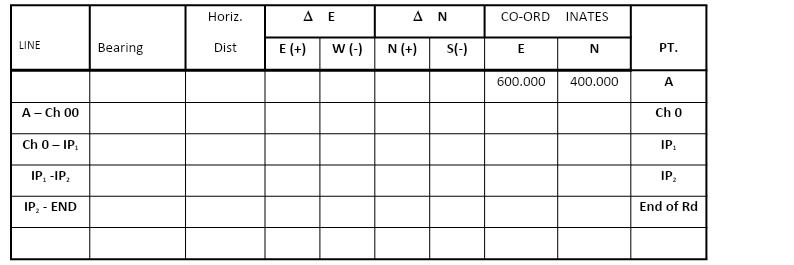

4a) Traverse and Coordinate Calculations

Survey Party’s Traverse from SSM to point X

Calculate the Coordinates of the end of your road

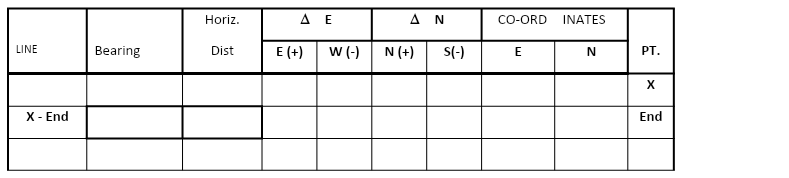

Calculate the bearing and distance to set out the end of your road from point X.

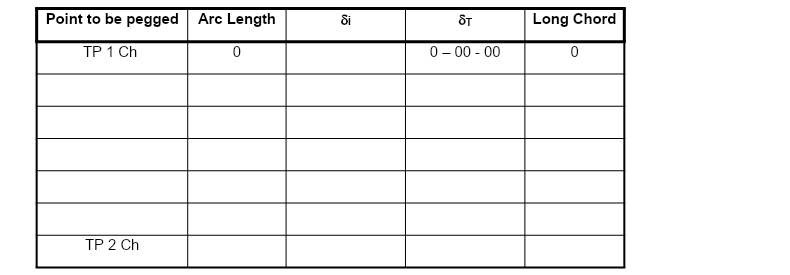

4b) Setting Out Data for Curve 1

Points to be set out must lie at every even 10 or 20m of running chainage and also the crown point.  (You may not fill every line in these tables).

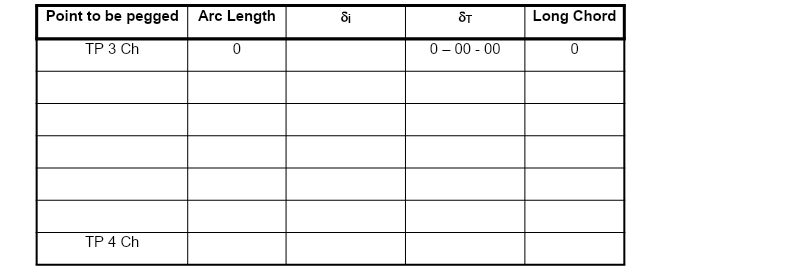

Setting Out Data for Curve 2

Points to be set out must lie at every even 10 or 20m of running chainage and also the crown point.

4c) Instructions to the Survey Party for any extra information you want them to collect along the Centre Line, to assist your final design.

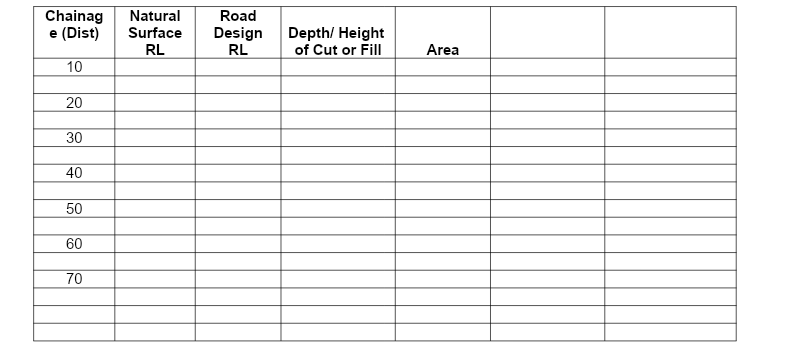

5) Volume Estimation

It is not essential that you use this table.

If you prefer to use another layout, please do so below this table.  Ensure that you show the volume at the bottom of the page in the space provided.

6) Design Meeting Specifications

In your judgement, were all the design criteria met?      YES / NO

If not, please explain or describe the problem area/s and briefly list the decisions you made, as to why your design is as it is.
